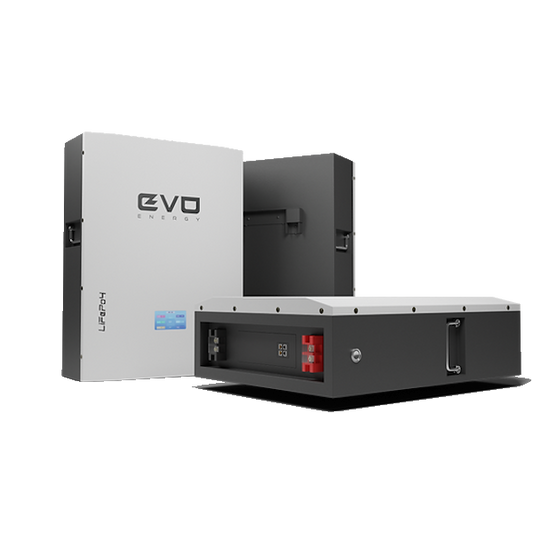

Discover the Evo Lithium Battery - 5.7kW LiFePO4/C, offering robust power, fast charging, and advanced safety features for reliable energy storage in solar systems, RVs, and emergency backups.

Specification

Energy Capacity [kWh] 5.760kWh
Usable capacity [kWh] 5.760kWh
Max Continues Discharge Power [kWh] 7.2KW
Current Capacity [Ah] 120Ah
Max & Recommended Charge Current [Ah] 100Ah/150Ah
Max & Recommended Discharge Current [Ah] 150Ah/100Ah
Nominal Voltage 48VDC
Cut off Voltage [VDC] 45VDC
Bulk Charge/ Float Charge [VDC] 53.5VDC/ 52.5VDC
Working Temperature [°C] -10°C to 55°C
Communication RS485 / CAN (CAN H4; CAN L5)
Parallel Up to 15 Units
Storage Temperature Long Term [°C] -20°C to +35°C (<1 Year, SOC: 20% - 60%)
Elevation [meters] ≤4000m
Dimension of actual unit/ weight [mm/kg] 650L x 475w x 190h / 68.5kg
Dimensions boxed [mm/kg] 670L x 490w x 220h / 70kg
Enclosure Aluminuim, IP21
Accessories Not Included 25mm cable 1 meter (1x red, 1x black)
Product Warranty 10 years

Documents

Evo 5.7kWh Datasheet
Evo 5.7kWh Uder Manual
