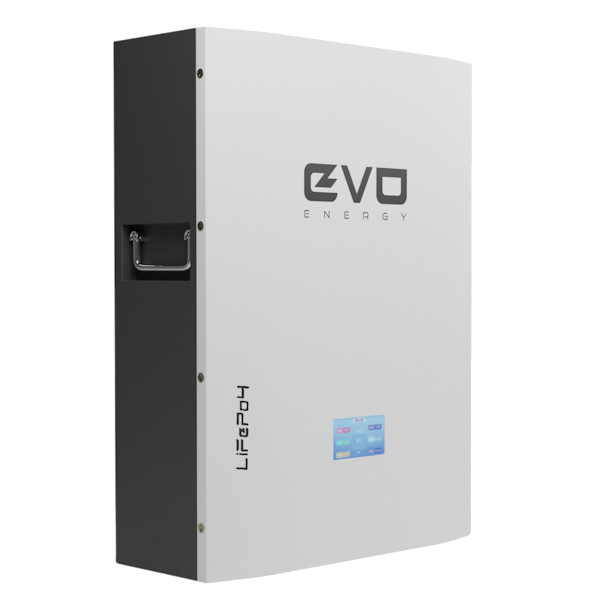

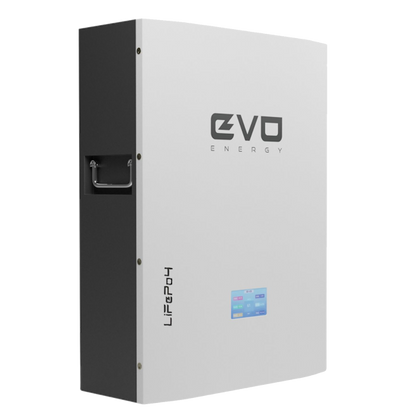

Evo 5.7kW Battery

Discover the Evo Lithium Battery - 5.7kW LiFePO4/C, offering robust power, fast charging, and advanced safety features for reliable energy storage in solar systems, RVs, and emergency backups.

Specification

• Energy Capacity [kWh] 5.760kWh
• Usable capacity [kWh] 5.760kWh
• Max Continues Discharge Power [kWh] 7.2KW
• Current Capacity [Ah] 120Ah
• Max & Recommended Charge Current [Ah] 100Ah/150Ah
• Max & Recommended Discharge Current [Ah] 150Ah/100Ah
• Nominal Voltage 48VDC
• Cut off Voltage [VDC] 45VDC
• Bulk Charge/ Float Charge [VDC] 53.5VDC/ 52.5VDC
• Working Temperature [°C] -10°C to 55°C
• Communication RS485 / CAN (CAN H4; CAN L5)
• Parallel Up to 15 Units
• Storage Temperature Long Term [°C] -20°C to +35°C (<1 Year, SOC: 20% - 60%)
• Elevation [meters] ≤4000m
• Dimension of actual unit/ weight [mm/kg] 650L x 475w x 190h / 68.5kg
• Dimensions boxed [mm/kg] 670L x 490w x 220h / 70kg
• Enclosure Aluminuim, IP21
• Accessories Not Included 25mm cable 1 meter (1x red, 1x black)
• Product Warranty 10 years

Documents

Evo 5.7kWh Datasheet
Evo 5.7kWh Uder Manual
