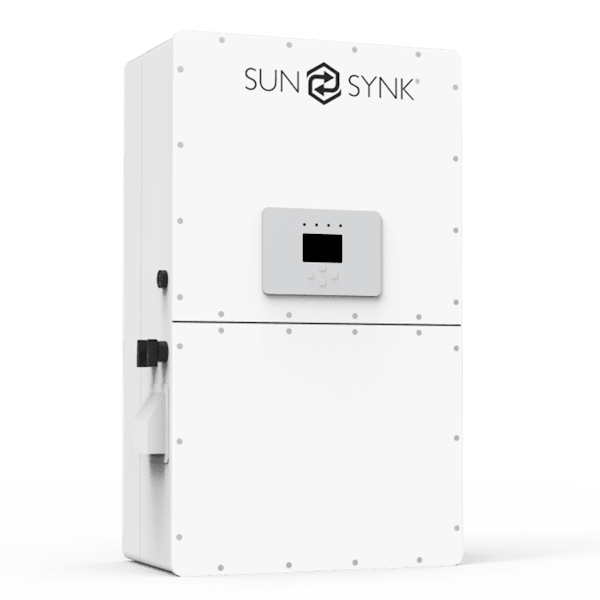

SunSynk 50kW 3-Phase
SunSynk 50kW 3-Phase
Contact Us
Couldn't load pickup availability
This is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
Designed for easy installation and maintenance, the Sunsynk 50kW 3-Phase Hybrid Inverter will seamlessly integrate into your world to reduce costs, and provide reliable, renewable energy.
This power management tool allows the user to hit those ‘parity’ targets by managing power flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.
Product Features
Four MPPT trackers giving allowance to flexible PV array configurations.
Allows DC oversizing up to 30% more than the rated AC power.
Unit can be operated without batteries (using PV and grid power).
Supports Wi-Fi remote monitoring as standard.
Type II DC/AC SPD as standard.
Overload, over temperature and short circuit protection as standard.
Specifications
Weight: 75 kg
Rated Power: 50,000 W
Min PPT Voltage: 150 V
Max PPT Voltage: 850 V
DC Startup Voltage: 180 V
DC Shutdown Voltage: 150 V
Max Input Voltage: 1,000 V
Max DC Power: 65,000 W
Max AC Power (5 Minutes): 55,000 W
Surge AC Power (1 Second): 75,000 W
Max DC Current: 144 A
Max DC Inputs: 8
Has DC Fuses: 0
Connector: MC4
Included Connectors: 0
Euro Efficiency: 99.9 %
Transformer: None
MPPT Quantity : 4
Has Integrated DC Switch: Yes
Warranty: 5 years
