GoodWe EO Series 6kW
GoodWe EO Series 6kW
Contact Us
Couldn't load pickup availability

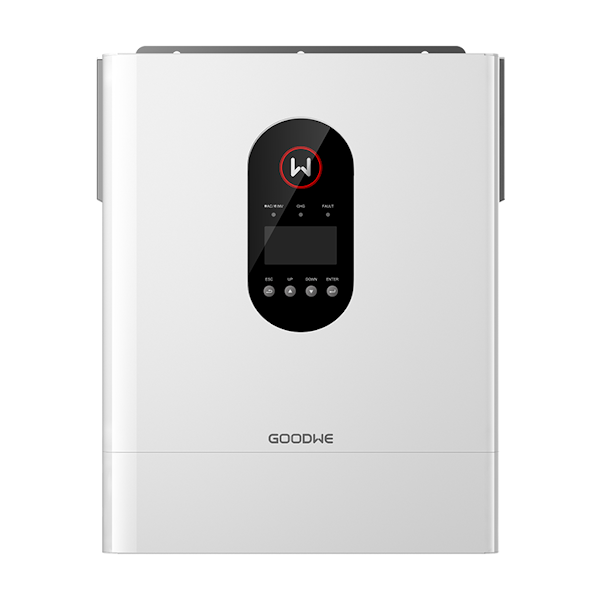

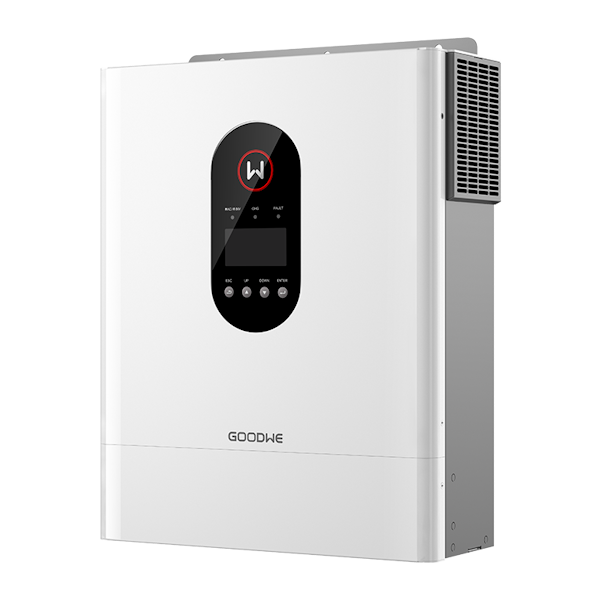

The GoodWe EO Series off-grid inverter is the ideal solution for those living in areas without power grids or experiencing frequent power outages. Its robust design guarantees durability even in harsh conditions, while the user-friendly setup minimizes installation costs. The inverter integrates dry contacts that can be connected to control loads and a generator, optimizing energy consumption and extending backup duration. It can operate with or without batteries and also allows multiple inverters to connect to a single battery system. Additionally, parallel connection is supported for expanded system capacity.
Smart Load Control
The EO Series off-grid inverter includes dry contacts that can connect to an external contactor or a generator. This enables precise control over load management and generator operation, allowing you to automatically turn loads and the generator on or off based on available energy.
Flexible & Adaptable Applications
The inverter is compatible with both lithium and lead-acid batteries, offering versatility in energy storage options. With a maximum efficiency of 97.0%, the EO Series ensures optimal performance and energy utilization, making it a reliable choice for diverse off-grid scenarios.
Specifications
Battery Input
Battery Type Lithium / Lead-acid
Nominal Battery Voltage (V) 48
Battery Voltage Range (V) 40~60
Start-up Voltage (V) 36
Number of Battery Input 1
Max. Continuous Charging Current (A) 120
Max. Continuous Discharging Current (A) 140
Max. Charging Power (W) 6000
Max. Discharging Power (W) 6700
PV Input
Max. Input Power (W) 6600
Max. Input Voltage (V) 500
MPPT Operating Voltage Range (V) 120 ~ 450
Start-up Voltage (V) 120
Nominal Input Voltage (V) 360
Max. Input Current per MPPT (A) 30
Max. Short Circuit Current per MPPT (A) 37.5
Number of MPP Trackers 1
Number of Strings per MPPT 2
AC input
Max. Apparent Power from Utility Grid (VA) 8050
Nominal Input Voltage (V) 220 / 230
Input Voltage Range (V) 90 ~ 280
Nominal Input Frequency (Hz) 50 / 60
Input Frequency Range (Hz) 45 ~ 65
Max. AC Current from Utility Grid (A) 35
AC Output
Nominal Apparent Power (VA) 6000
Nominal Output Power (W) 6000
Max. Output Apparent Power (VA) 6000 (12000 at 5sec)
Max. Output Current (A) 27.6 (52.2at 5sec)
Nominal Output Voltage (V) 220 / 230
Nominal Output Frequency (Hz) 50 / 60
Output THDv (@Linear Load) <3%
Transfer time <10ms typical; <20ms Max
AC Data (Generator)
Nominal Apparent Power from AC generator (VA) 6000
Max. Apparent Power from AC generator (VA) 8050
Nominal Intput Voltage (V) 220 / 230
Input Voltage Range (V) 90 ~ 280
Nominal AC generator Frequency (Hz) 50 / 60
AC generator Frequency Range (Hz) 45 ~ 65
Max. AC Current From AC generator (A) 35
Nominal AC Current From AC generator (A) 26.1
Efficiency
Max. Efficiency ≥97.0%
European Efficiency ≥96.5%
Max. Battery to AC Efficiency ≥95.0%
MPPT Efficiency ≥99.5%
Protection
PV String Current Monitoring Integrated
PV Insulation Resistance Detection Integrated
Residual Current Monitoring Integrated
Battery Reverse Polarity Protection Integrated
AC Overcurrent Protection Integrated
AC Short Circuit Protection Integrated
AC Overvoltage Protection Integrated
DC Surge Protection Type III
AC Surge Protection Type III
AFCI Optional
General Data
Operating Temperature Range (oC) -10 ~ +60
Relative Humidity 5 ~ 95% (Non-condensing)
Max. Operating Altitude (m) <2000
Cooling Method Smart Fan Cooling
User Interface LED, LCD, USB, RS485, Dry-contact, WLAN + APP
Communication with BMS RS485, CAN
Communication with Portal WiFi / LAN / BLU
Weight (kg) 13
Dimension (W × H × D mm) 400 × 495 × 130
Topology PV: Non-isolated; BAT: isolated
Self-consumption at Night (W) 15
No Load Power Consumption ≤30
Ingress Protection Rating IP21
Mounting Method Wall Mounted
