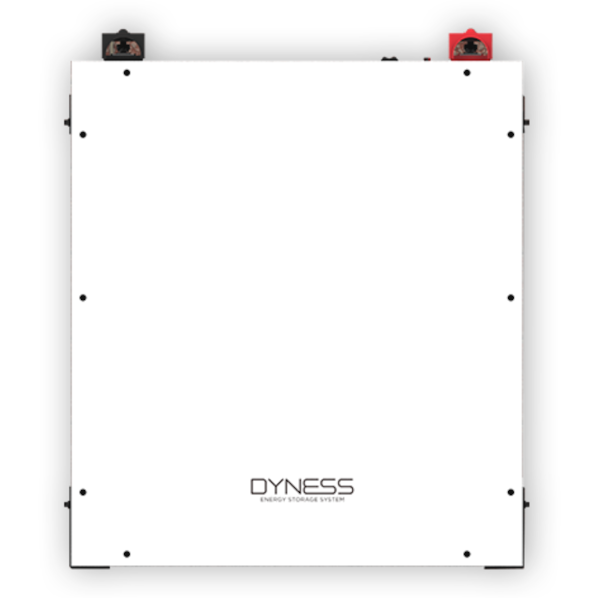

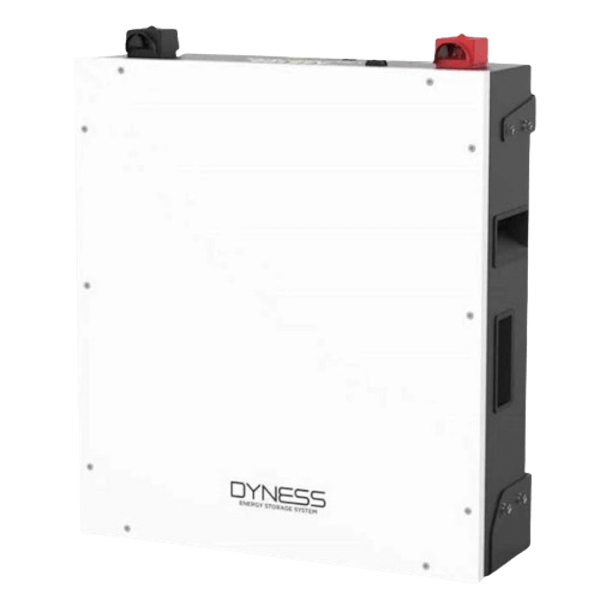

Dyness 5.12KW Lithium Battery
Dyness 5.12KW Lithium Battery
Low stock: 3 left
Couldn't load pickup availability
DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring,and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.
Upgrade your energy storage system with the Dyness 5.12KW Lithium Battery. This high-quality battery offers increased efficiency and longevity for your power needs. With Dyness, you can rely on cutting-edge technology and expert design for a reliable and sustainable energy solution.
Specification
| Model | DL5.0C |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Recomended Charge & Discharge C Rate | 0.5C |
| Maximum Discharge C rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max Continous Charge Current | 75A |
| Max Continous Discharge Current | 100A |
| Peak Power Charge/Discharge Current | 110A (15s) |
| Depth of Discharge (DOD) | 95% |
| Net Weight | 54 kg |
| Dimension[W*D*H] | 558*545*150 mm |
| Charging Temp. Range | 0~55℃ |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | lP20 |
| Expansion | up to 50 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing |
[1]Test conditions: 0.2C Charging/Discharging, @25℃, 95% DOD
Documents
Dyness DL5.0C Datasheet
Dyness DL5.0C Warranty
Dyness DL5.0C TUV Certificate
Dyness DL5.0C TUV Attestation of Conformity
Dyness DL5.0C Test Report
