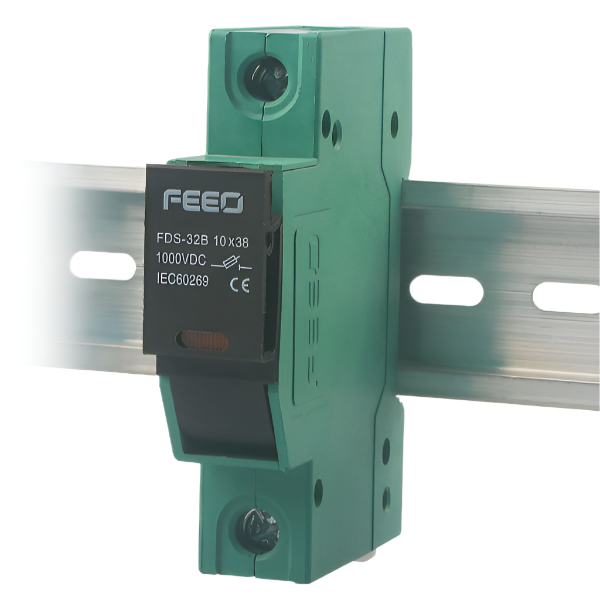

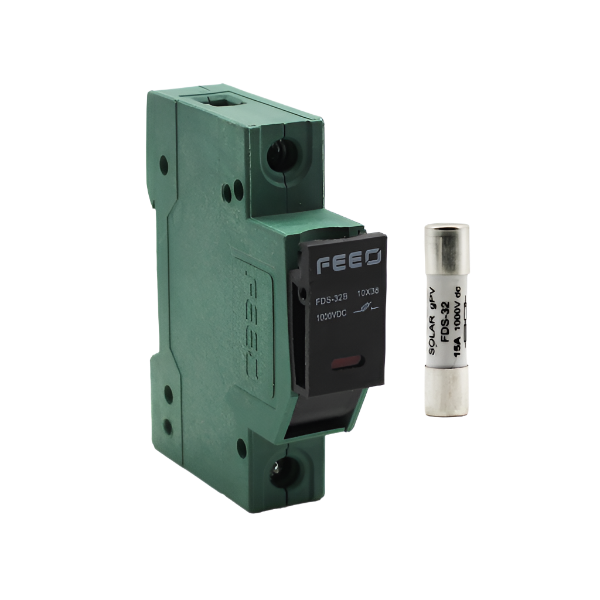

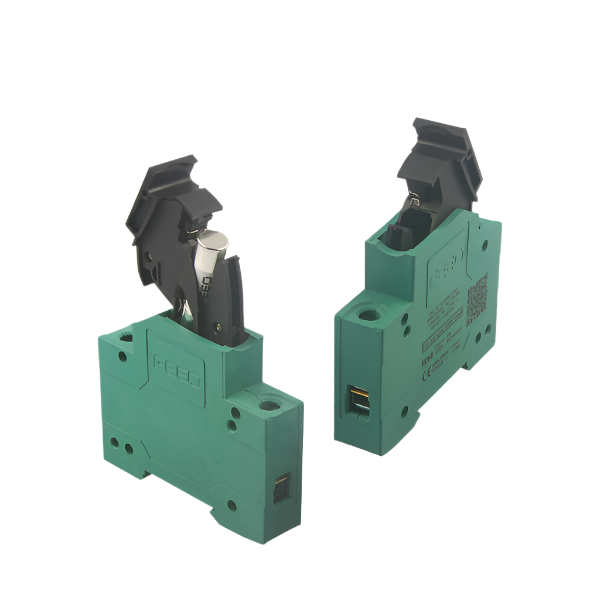

Product Features Designed according to IEC60269-1 Rated current: 12 A or 15A Rated DC voltage: 1000V Rated breaking capacity: DC 33kA Operating class gPV for solar protection
Specifications Max high power consumption: 3.5 W Connection (mm²): 2.5 - 10 Working Temperature (°C): -30 to 70 Resistance and Damp Hot: Class 2 Altitude (m): ≤ 2000 Relative Humidity: ≤ 95% Protection Class / Degree: IP20 Pollution: 3 Installation Environment: No obvious shock and vibration Installation Class / Type: Class III / DIN rail Dimensions in mm ( W x H x L ): 18 x 60 x 78 Fuse size: 10 x 38 Weight (kg): 0.07
