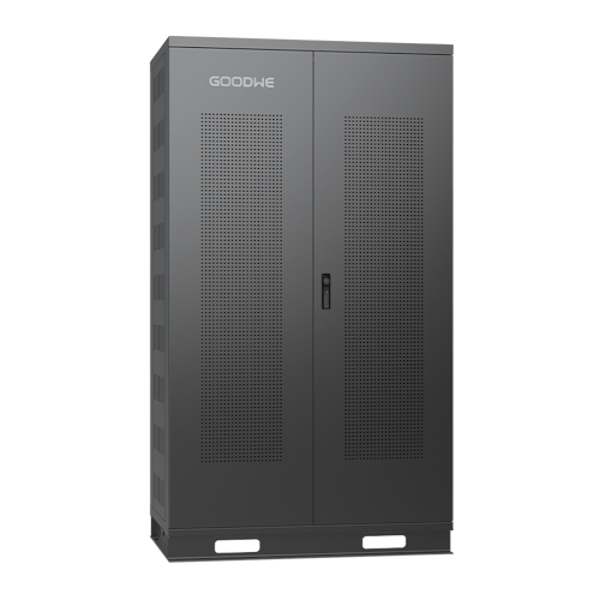

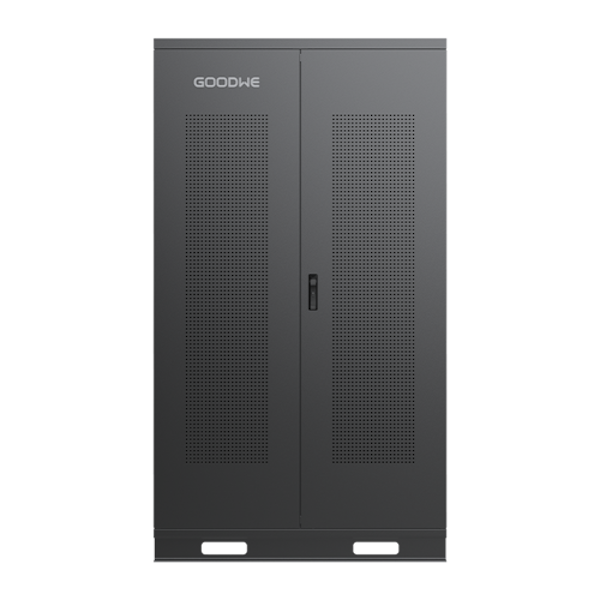

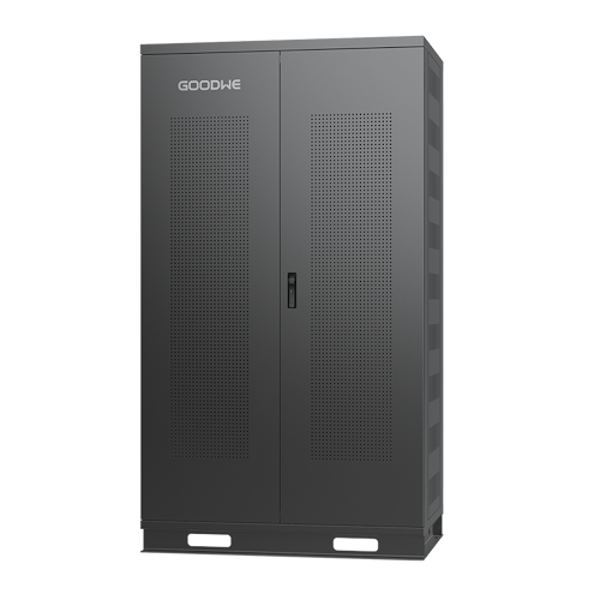

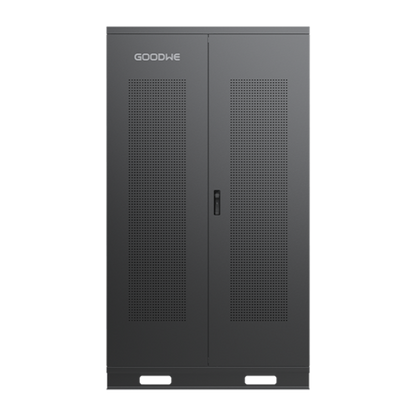

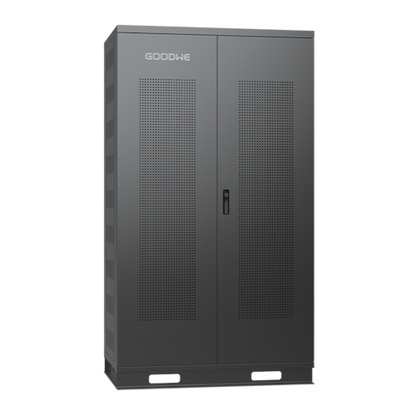

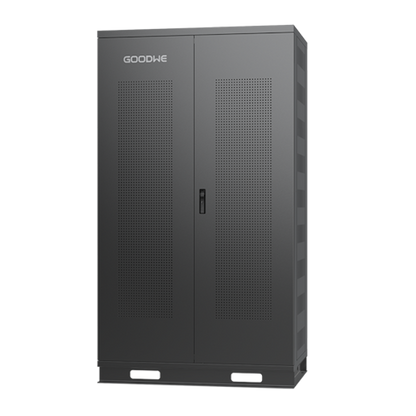

GoodWe Lynx C Series
GoodWe Lynx C Series
Contact Us
Couldn't load pickup availability
Featuring enhanced safety and reliable performance, GoodWe's high-voltage battery Lynx C Series has been specially designed for various C&I solar rooftop applications. Lynx C combines with GoodWe hybrid inverter ETC Series and retrofit battery inverter BTC Series to form a highly-flexible energy storage system that helps manage energy use for maximized self-consumption and ensures a reliable power supply for business. In addition, the system allows the user to level out peak demands and ultimately leads to the reduction of electricity bills. The battery comes with automatic detection of extended battery modules, which enables easy configuration and fast commissioning.
Smart Control for Smart Energy
Lynx C accommodates smart remote monitoring of the whole energy storage system and remote updates. When the battery is running at a low voltage, it automatically enters the low-power sleep mode, which reduces the standby power consumption and guarantees a longer standby time. Take smart control of your smart energy.
Superb Safety & Reliability
The integrated black start capability ensures the solar plus storage system can continue to run at a certain level even if the rest of the electricity grid is out of service, resulting in system reliability and safety for various scenarios. Insulation resistance test is supported to prevent electrical shocks, ensuring the safety of personnel and reducing or eliminating downtime. Furthermore, the reliable lithium iron phosphate (LFP) battery cell technology ensures maximum safety and a longer life cycle.
Specifications
Usable Energy (kWh)*1 101.38
Battery Module LX C9.2-10: 38.4V 9.21kWh
Number of Modules 11
Cell Type LFP (LiFePO4)
Nominal Voltage (V) 422.4
Operating Voltage Range (V) 369.6 ~ 468.6
Nominal Dis- / Charge Current (A)*2 100
Nominal Power (kW)*2 42.24
Operating Temperature Range (°C)
Charge: 0 ~ +45;
Discharge: -20 ~ +50
Relative Humidity 0 ~ 95%
Max. Operating Altitude (m) 2000
Communication CAN + RS485
Weight (kg) 1120
Dimensions (W × H × D mm) 1155 × 1650 × 730
Ingress Protection Rating IP21
Mounting Method Grounded
Standard and
Certification
Safety IEC62619, IEC62040, IEC63056
EMC IEC / EN61000-6-1 / 2 / 3 / 4
Transportation UN38.3
