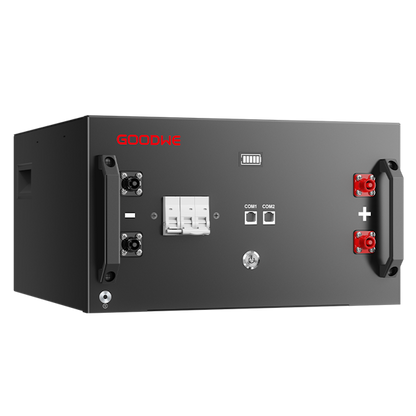

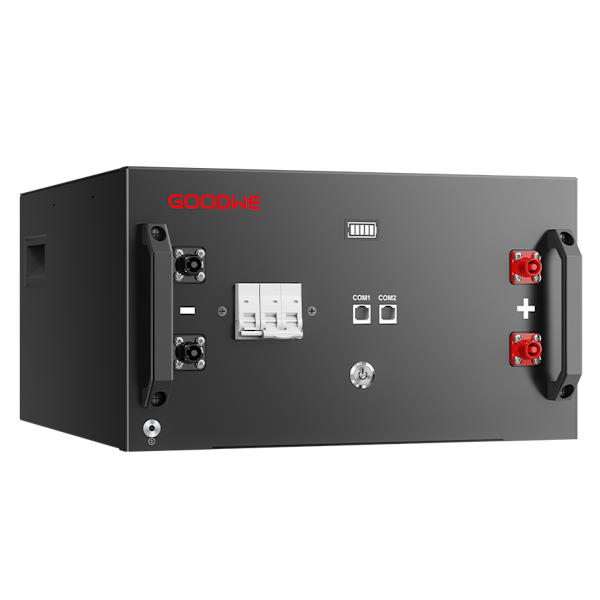

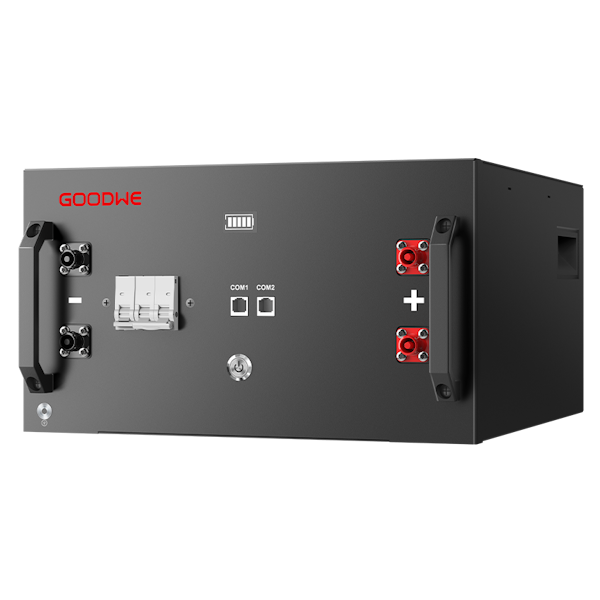

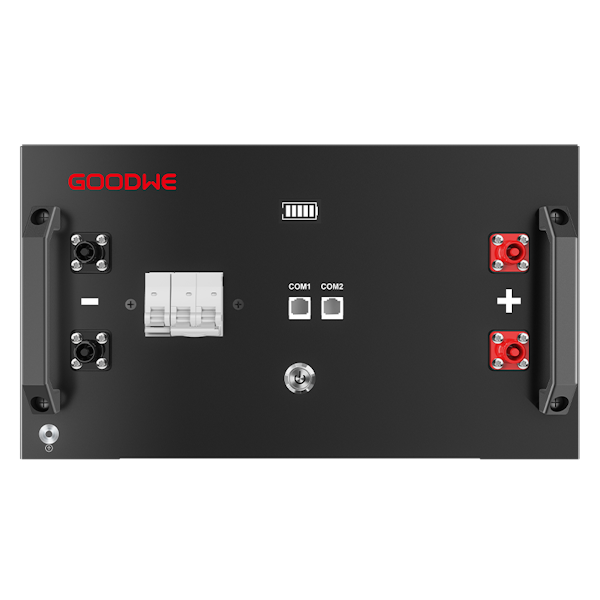

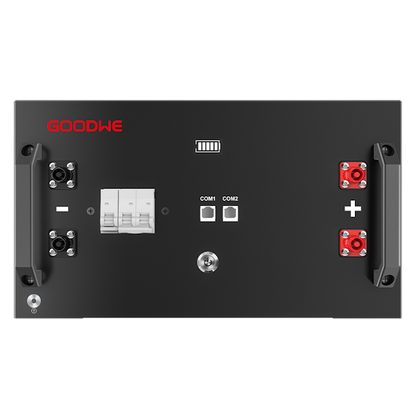

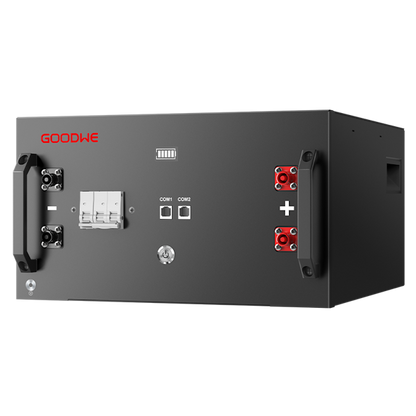

GoodWe SECU-A 5.4kWh LV

GoodWe’s SECU-A Series is a low voltage lithium battery, which is made from safe and durable lithium iron phosphate. The battery follows a modular design, making it extendable. As a plug and play device, it can be installed easily and quickly. Thanks to their safe design, the batteries can be connected together in parallel.

Specifications

Usable Energy (kWh) 5.4
Battery Module SECU A5.4-20
Number of Modules 1 / 2 / 3 / 4 / 5 / 6
Cell Type LFP (LiFePO4)
Nominal Voltage (V) 51.2
Operating Voltage Range (V) 47.5 ~ 57.6
Nominal Dis- / Charge Current (A) 50
Nominal Power (kW) 2.56
Operating Temperature Range (°C) Charge: 0 ~ +50 / Discharge: -10 ~ +50
Relative Humidity 0 ~ 95%
Max. Operating Altitude (m) 2000
Communication CAN, RS485
Weight (kg) 49
Dimensions (W × H × D mm) 403 × 227 × 455 (SECU A5.4-20)
Ingress Protection Rating IP20
Mounting Method Grounded / Cabinet

Standard and Certification
Safety IEC62619, IEC63056, CEC
EMC CE, RCM
Transportation UN38.3

Documents

GoodWe SECU-A Datasheet
GoodWe SECU-A User Manual
GoodWe SECU-A Batterry Compatibility
