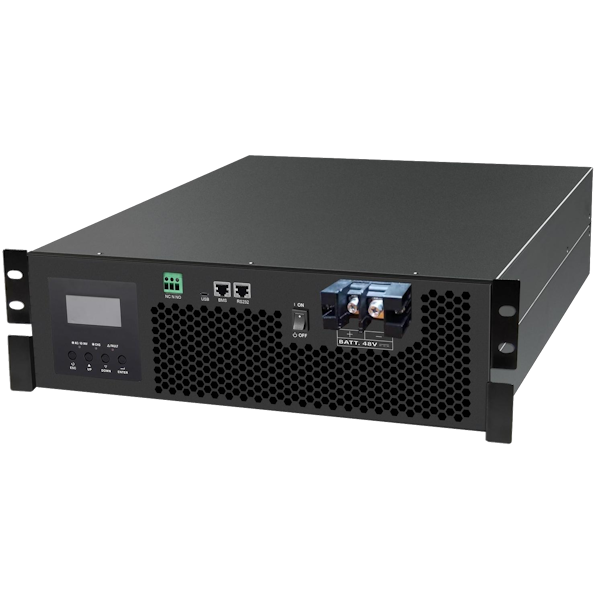

Mecer King 5K 19" Rack Mount Inverter

Mecer Axpert King 5K 5000VA / 5000W hybrid pure sine Wave inverter is designed with zero transfer time perfect for critical devices such as servers and ATM. Its equipped with powerful 140A super charger, 80A MPPT solar charger and 60A AC charger. Detachable LCD control module allows users to remotely monitor this inverter. Its also able to expand power capacity to 45KW with 9 units in parallel operation.

Features:

• Zero transfer time to protect mission-critical loads such as servers and ATM.
• Detachable LCD control module with multiple communications
• Built-in Bluetooth for mobile monitoring (Android App is available)
• Supports USB On-the-Go function
• Reserved communication port for BMS (RS485, CAN-BUS or RS232)
• Configurable AC/PV output usage timer and prioritization
• Optional parallel operation up to 9 units

Specification

Basic info
Product Code SOL-I-AX-5.RM
Model Axpert King 5K
Rated Power 5000VA/5000W
Parallel Capability Up to 9 units

Input
Voltage 230 VAC
Voltage Range 110-280 VAC
Frequency Range 50 Hz/60 Hz (Auto sensing)

Output
AC Voltage Regulation 230VAC ± 5%
Output THDv & lt;3% for linear load, Surge Power 10000VA for 5 sec
Efficiency (Peak) 93 % at Line Mode, 90% at Battery Mode
Transfer Time 0 ms
Waveform Pure sine wave

Battery
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 66 VDC

Solar Charger & AC Charger
Solar Charger Type MPPT
Maximum PV Array Open Circuit Voltage 145 VDC
Maximum PV Array Power 4000 W
MPPT Range @ Operating Voltage 60~115VDC
Maximum Solar Charge Current 80 A
Maximum AC Charge Current 60 A
Maximum Charge Current 140 A

Physical
Dimension, D x W x H (mm) 140 x 300 x 512
Net Weight (kgs) 12.2
Communication Interface USB/RS232/RS485/Bluetooth/Dry-contact

Operating Enviroment
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C

Documents

Mecer King 5K 19" Rack Mount Inverter Manual
