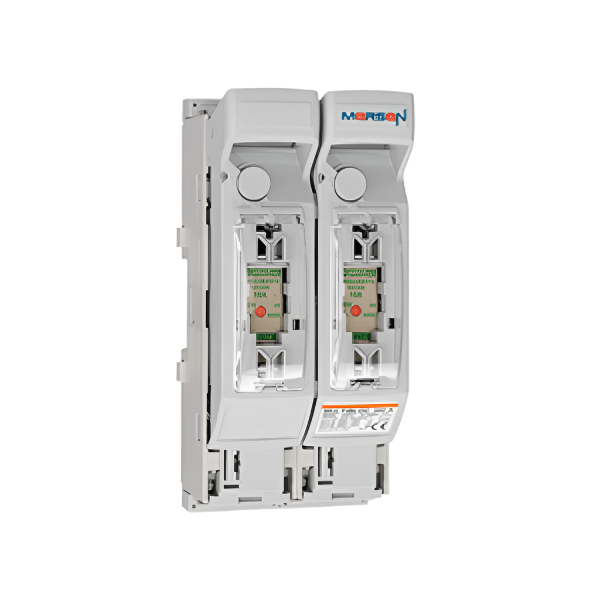

Mersen Two Pole Battery Fuse Disconnector

The production programme of MULTIBLOC® series 1.ST8 comprises
NH fuse switch disconnectors for 80A - 160A.
They are designed for bottom fitting/panel installation and are
available in single pole, double pole, tiple pole and quadruple pole
units.
For installation of MULTIBLOC® NH fuse switch disconnectors in
distribution units with central cover, respective covers are used to
obtain a uniform profile in height and length.
MULTIBLOC® size 1 are designed for NH fuse-links in accordance with
IEC/EN 60269-2, VDE 0636-2, size 1, 250A.
MULTIBLOC® offers the user the possibility of fast and easy
installation as well as a high degree of security during installation and
maintenance.

FEATURES & BENEFITS
• Touch protection IP 20 – when fuse
link is in test mode IP rating is maintained
• Parking position of switch operating cover even with fuse-links
inserted
• Electronic or electro-mechanic fuse
monitoring – optional
• Modular system of cover – cover
for cable termination area can be
extended as required
• Varieties of cable termination:
screw, bolt, clamp strap, extendable
for V-terminal – optional
• Padlocking and sealing of switch
door cover – optional
• Indicating switch for switch door
position – optional
• Installation on to DIN rails in accordance with EN 60 715 – optional
• Installation on to 100mm bus bar
system with adapter
• Safe on load connection/disconnection in accordance with IEC
60947-3

APPLICATIONS
• Panel boards for industrial use
• Feeder pillars for industrial use
• Meter distribution units
• Measuring transformer cabinets
• Transmitting stations for telecommunications
